Biohort SmartBase Foundation for Neo

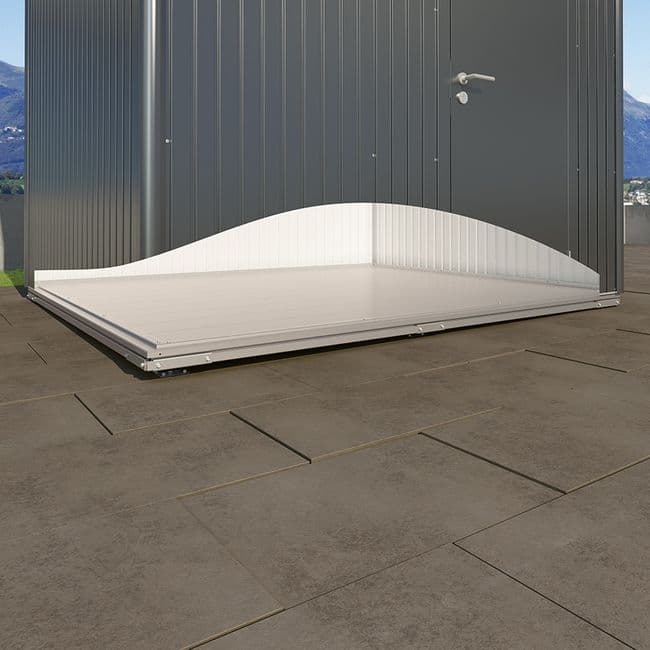

The SmartBase foundation for the Neo shed offers an efficient and robust solution for installing sheds on uneven terrain. Designed with high-quality materials, it allows for compensating for height differences of up to 4 cm through an adjustable foot system, providing a stable and level base without the need for an additional frame or floor plate.

Main Features

• Compensation for height differences: Galvanised adjustable feet that correct terrain irregularities up to 4 cm (For greater differences, we offer the SmartBase Plus🔗 foundation, with an adjustable height up to 15 cm).
• Easy installation and disassembly: Can be easily removed without affecting the ground surface.
• Wide compatibility: Suitable for all Biohort sheds, equipment cabinets, and MiniGarage.
• High structural resistance: Supports up to 200 kg/m² of load.
• Advanced protection: Incorporates a built-in water barrier to prevent leaks.
• Resistance to adverse weather conditions: Designed to withstand strong winds and storms.

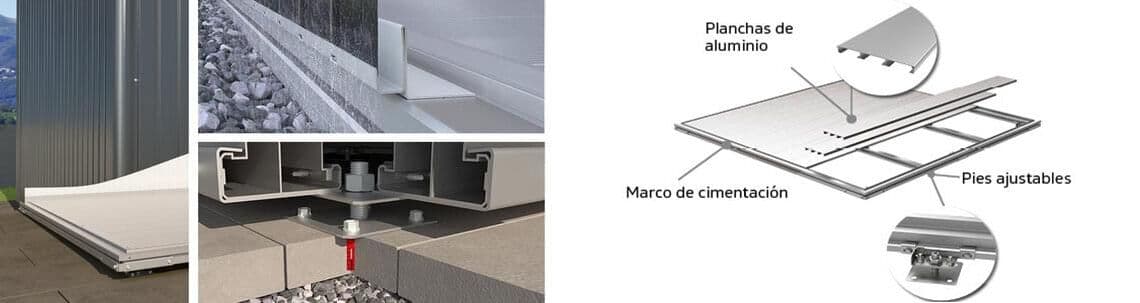

Included Components

• Aluminium sheets with a grooved surface for added stability.
• Foundation frame specifically designed to optimise installation.
• Adjustable feet with height compensation mechanism.
• Integrated water barrier for additional protection.

No need to install a frame or aluminium floor plate, simplifying assembly and reducing costs.

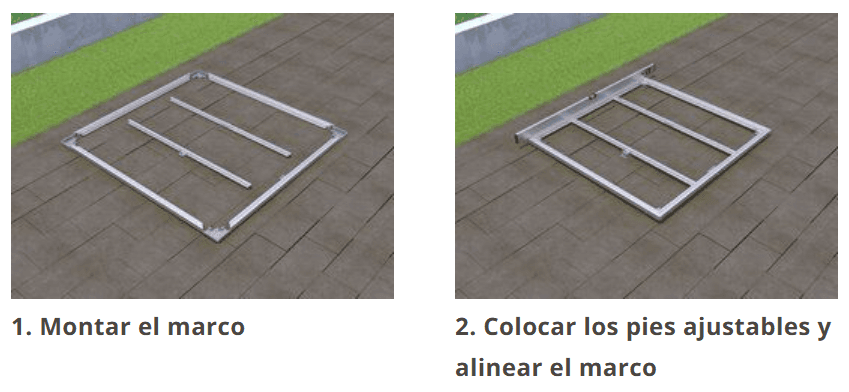

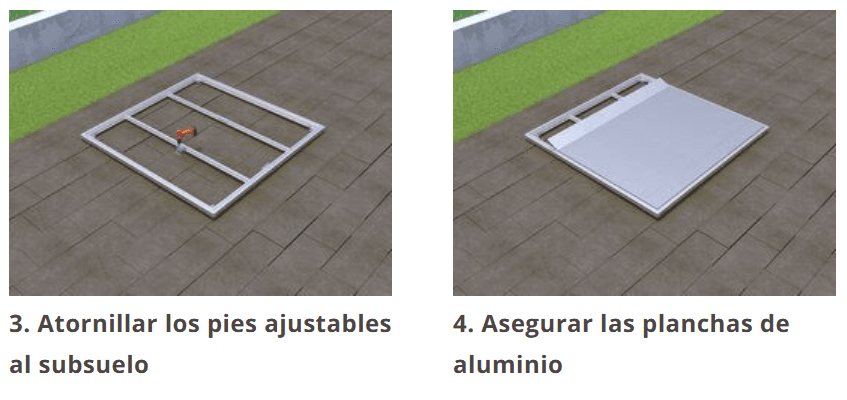

Installation Process

• Estimated time: Between one and two hours with two people, depending on experience and the type of shed.
• Required tools (not included): Spirit level, drill with Ø10 mm bit, and spanners in sizes 13 and 24.

Dimensions and weights by model

• 1A: 166 x 166 cm | 52.5 kg
• 1B, 2A: 222 x 166 cm | 65.4 kg
• 1C, 3A: 278 x 166 cm | 82.7 kg
• 1D, 4A: 334 x 166 cm | 100.4 kg
• 2B: 222 x 222 cm | 82.3 kg
• 2C, 3B: 278 x 222 cm | 111.5 kg
• 2D, 4B: 334 x 222 cm | 131.7 kg
• 3C: 278 x 278 cm | 157.1 kg
• 3D, 4C: 334 x 278 cm | 171.8 kg
• 4D: 334 x 334 cm | 196.7 kg

The SmartBase foundation is an optimal choice for installing sheds on uneven concrete surfaces or paved areas. Its levelling system, combined with high-performance materials, ensures stability and durability in any environment.
