Biohort SmartBasePLUS Foundation for Neo

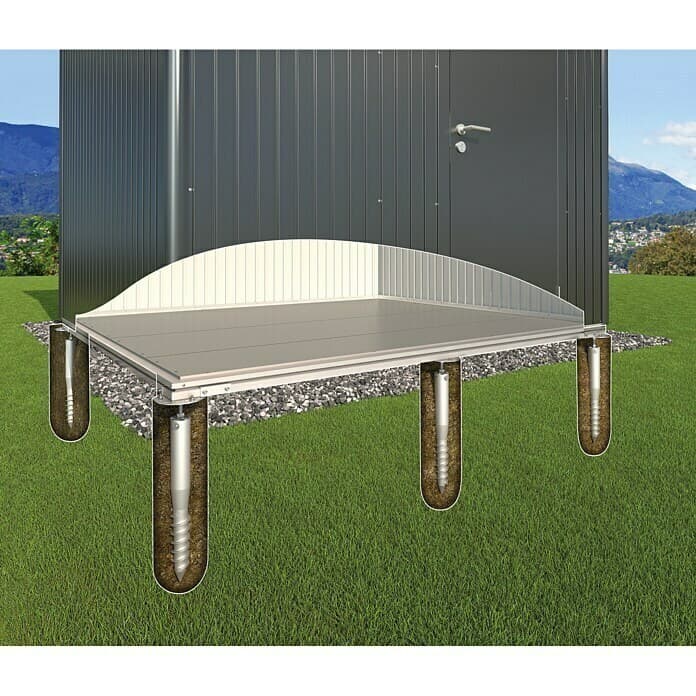

The SmartBasePLUS foundation for the Neo shed is an advanced solution specifically designed for sloped terrains. Unlike the SmartBase model, this patented system uses ground screws instead of adjustable feet, allowing for a more secure attachment and the ability to compensate for height differences of up to 15 cm.

Main Features

• Compensation for slopes: Galvanised ground screws with adjustable height up to 15 cm.
• Installation on natural terrain: Screws directly into the ground, provided it is compact and free of large stones and roots.
• High load capacity: Supports up to 200 kg/m².
• Secure attachment: Provides superior stability on uneven surfaces.

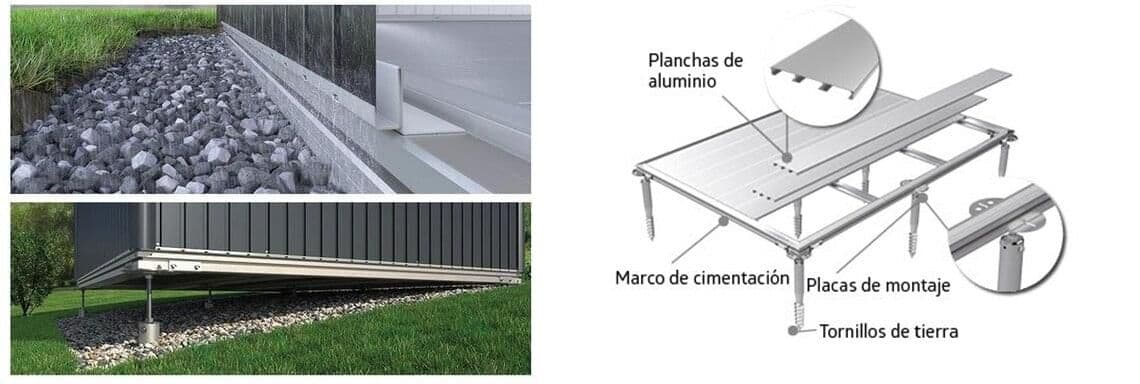

Included Components

• Aluminium plates for added strength and durability.
• Aluminium floor frame designed for optimal integration.
• Galvanised ground screws with height adjustment mechanism.
• Fixing material and manual screwdriver to facilitate assembly.

Installation Process

• Estimated time: Depending on the type of ground and the experience of the installers.
• Ground requirements: Compact surface, free of large stones and roots.
• Required tools (not included): Spirit level, drill, socket wrenches SW13 and SW24, spade.

Dimensions and weights by model

• 1A: 166 x 166 cm | 76.1 kg
• 1B, 2A: 222 x 166 cm | 92.8 kg
• 1C, 3A: 278 x 166 cm | 119.1 kg
• 1D, 4A: 334 x 166 cm | 143 kg
• 2B: 222 x 222 cm | 109.7 kg
• 2C, 3B: 278 x 222 cm | 166 kg
• 2D, 4B: 334 x 222 cm | 192 kg
• 3C: 278 x 278 cm | 243.7 kg
• 3D, 4C: 334 x 278 cm | 258.3 kg
• 4D: 334 x 334 cm | 289.1 kg

The SmartBasePLUS foundation is the best option for installing sheds on sloped terrains. Thanks to its innovative ground screw system, it offers a solid attachment and efficient levelling, ensuring stability and resilience in any environment.
